Who controls an object?

Docs / NPCs and control

An assembly describes what something can do. A placement decides who controls it. A bicycle can be parked for you to ride, or belong to an NPC. A pedestrian can follow a route, stop when you approach and look at you. Those choices are Dream 2 data.

Dormant parking uses parked=true on a fixed controllable placement, or role=controllable on furnish. It activates one fleet rig when occupied, within the existing animation cap, and retains moved poses in saves. Parking rules. NPC driver and passenger ownership are unchanged.

Declare role on each new actor placement. For legacy source, omitting it infers controllable from the template's control capability, otherwise NPC from a route, otherwise prop. world(player=...) still selects the original car; the walking Explorer is engine-owned. Humanoid possession and custom input profiles are not implemented.

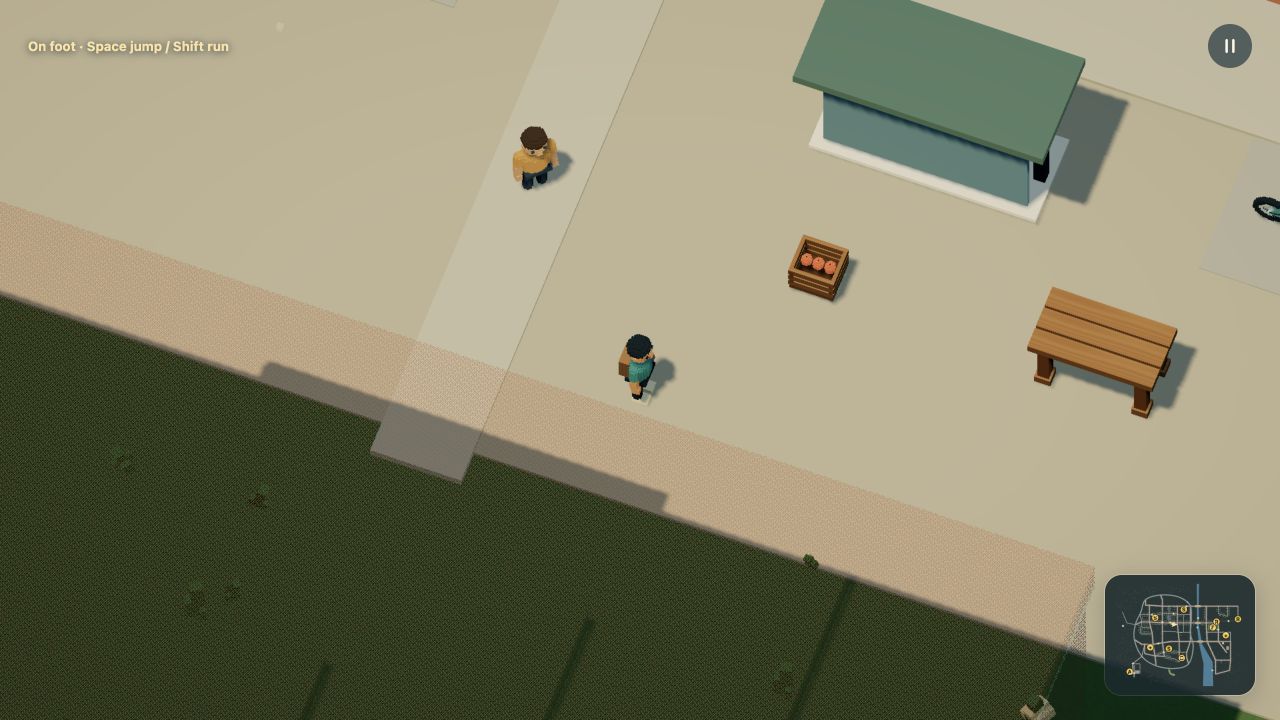

A pedestrian who notices you

This complete object-and-actor module compiles on its own and can be included in a world. Download npc-behavior.dream.

dream 2;
material blue(style=toon,colors=[#537eaa,#3c5f87]);
material skin(style=toon,colors=[#c59774,#a97655]);
object pedestrian(label="Pedestrian"){
  measure(kind=person,axis=y,meters=1.8);
  body(interaction=decor,radius=4,height=18);
  part torso(shape=capsule,material=blue,at=[0,11,0],size=[5,6,4]);
  part head(shape=sphere,material=skin,at=[0,16,0],size=[4,4,4]);
  part nose(shape=sphere,material=skin,at=[2,16,0],size=[1,1,1]);
  repeat legs(index=i,count=2){
    joint leg(at=[0,8,i*3-1.5],motion=swing(axis=z,deg=18,hz=.6,phase_deg=i*180)){
      part shin(shape=capsule,material=blue,at=[0,-4,0],size=[2,8,2]);
    }
  }
}
route promenade(kind=ambient,mode=loop,speed=9){
  point(at=[400,400]);
  point(at=[650,400]);
  point(at=[650,600]);
  point(at=[400,600]);
}
behavior attentive_walk(start=walking){
  state walking(action=patrol){
    on notice(event=near_player,to=watching,radius=65);
  }
  state watching(action=idle,face=player){
    on leave(event=far_player,to=walking,radius=95);
  }
}
place neighbor(object=pedestrian,route=promenade,role=npc,behavior=attentive_walk);

The NPC walks its placement's route until you come within 65 units, or 6.5 metres. It stops, rests its joints and turns toward you. Moving beyond 95 units lets it resume from the same point. The two radii prevent flickering between states at one boundary.

Program the routine

A behavior contains named state blocks and a starting state. Each state chooses one action:

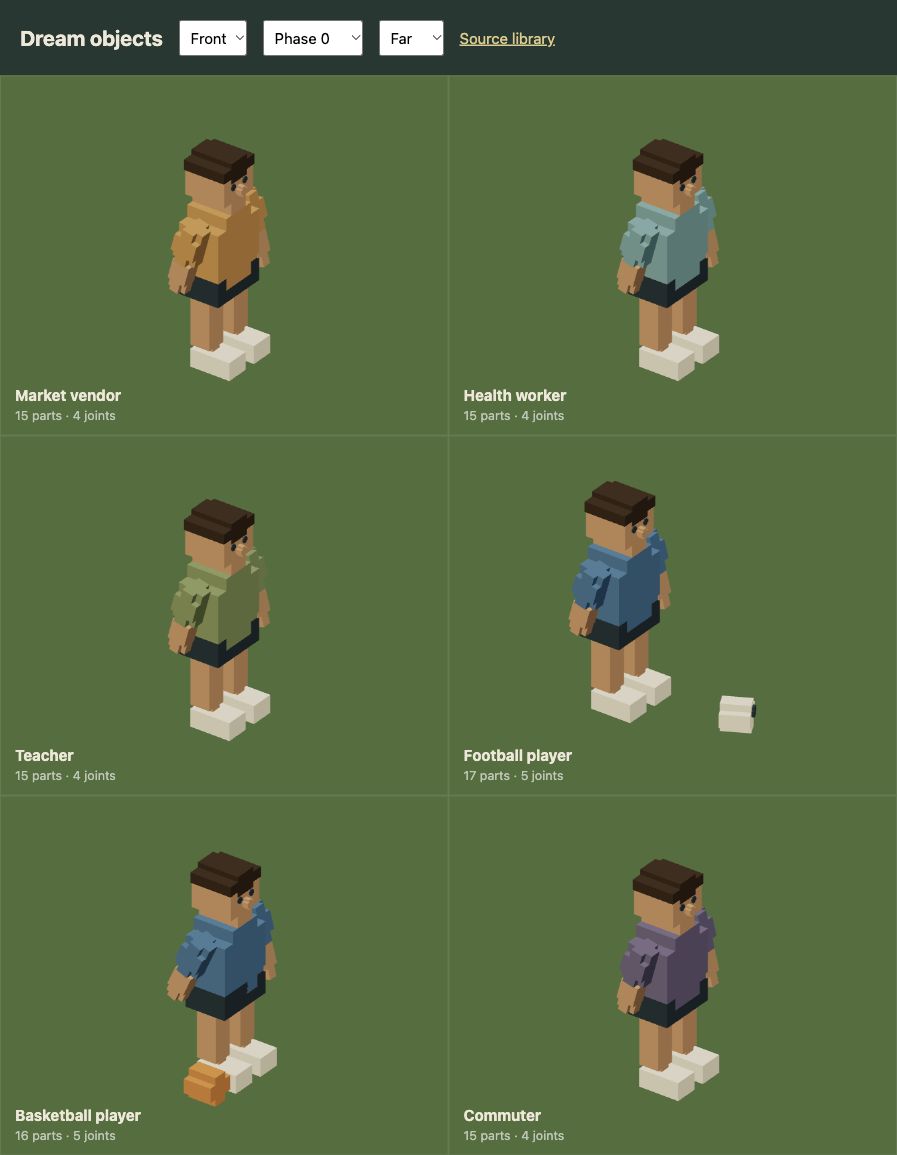

face=player is available on stationary states. It turns at at most 2.5 radians per second. Author assets facing local +X so their face agrees with their travel heading. Joints respect reduced motion.

Inside a state, on selects a transition:

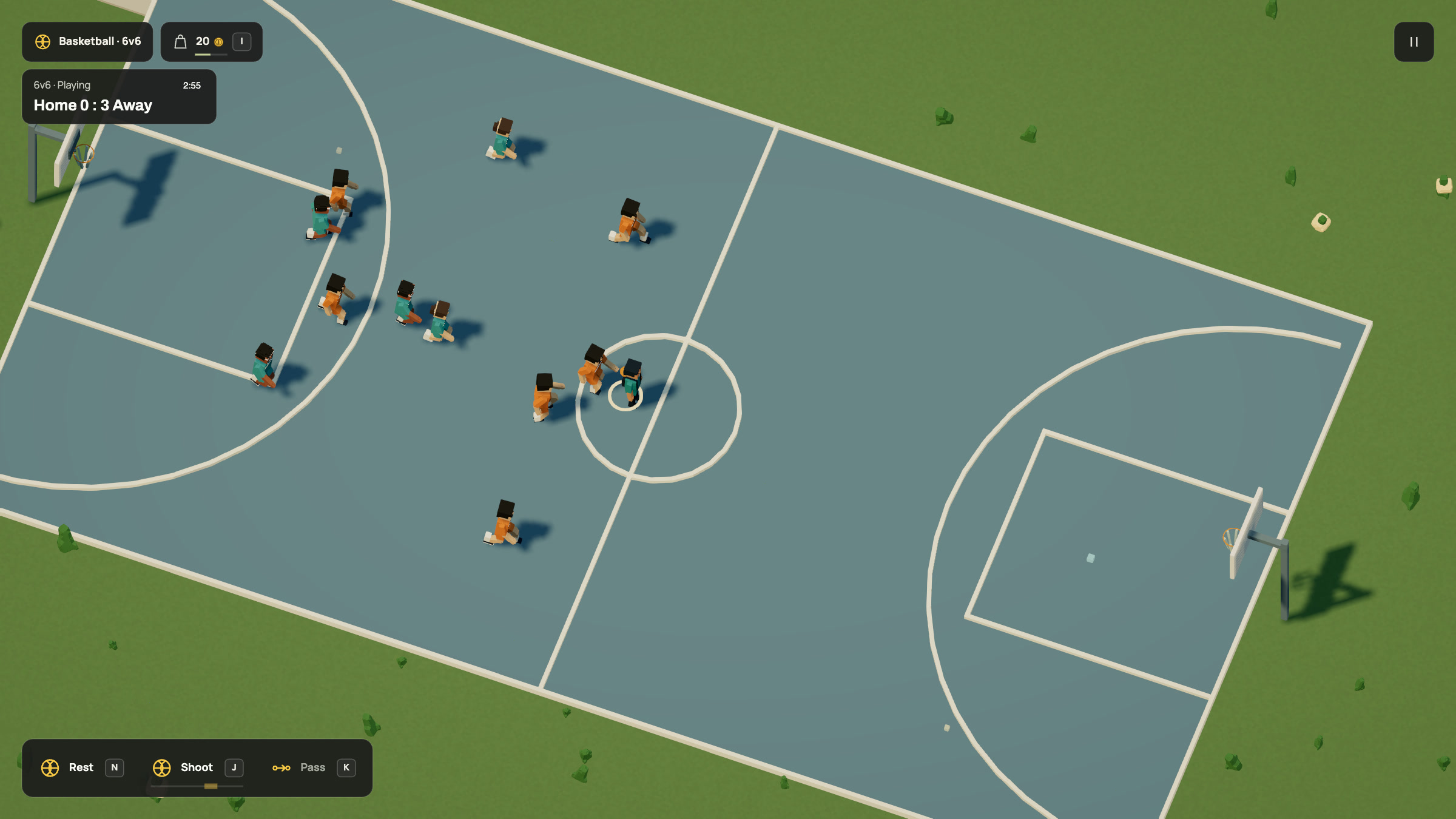

Give each transition a stable local ID and to state. Conditions are checked in declaration order. The first match wins, at most once per fixed simulation tick. State time resets on entry, including self-transitions. Use perform → idle → perform with after transitions for activity and rest, as the mock sports players do. These are authored routines, without football or basketball match rules.

Programs are reusable by placements in their source module. State names and targets belong to that program; every state must be reachable from its start. A patrol state requires a route on the placement. include merges programs and placements; asset imports only object capability data. Programs do not fetch modules, run JavaScript or call a model.

The live world now declares its people, animals, train and player vehicles explicitly. A commuter walks from home to the market and pauses near you. A vendor, teacher and health worker react in front of their destinations; sports players practise and notice you. Buses, a tram and a regional train follow street/rail routes with intermediate stops. Deer and gulls retain bounded habitats.

Clocks, collisions and limits

Each NPC owns a runtime snapshot: current state, elapsed state time, route time, animation time and heading. It lives beside vehicle and damage state, outside the accepted scene. Switching between walking, car, bicycle, scooter, boat, plane and passenger travel advances the same NPC clocks once per tick. Pause freezes them. R preserves them; Start over resets them.

A program-controlled NPC requires a version 2 assembly with a decor or solid cylinder, without a foundation or destruction. Street, tram and rail NPCs may use up to eight compound contacts for a long vehicle body. Ambient routes still require decor. Ground NPCs follow terrain; stationary people stay upright unless their template requests surface grounding. Complete-world validation checks dry, clear stationary footprints and the full authored route. Solid NPCs participate in the authored actor contacts; decor people remain nonblocking. General NPC programs use explicit clear patrol routes, without runtime pathfinding or an actor-to-actor traffic solver. Instanced ambient populations have separate bounded pavement navigation and animal avoidance. Keep NPC patrol routes clear.

The bounds are 16 programs per linked scene, 32 NPCs, 1–8 states per program and 0–4 transitions per state. Durations are .1–300 seconds; proximity radii are 10–240 world units. Existing caps remain 24 resident route actors/controllable vehicles and 24 live jointed assemblies including the player. A static NPC without joints does not consume an animation slot.

Command reference · Vehicle controls · Model instructions

Journeys with destinations

Use route(kind=walk) to keep a person's full body on entrance paths, pavements and crossings. A named stop can reference a home, market or other site; the live commuter visits both ends of the market journey. street buses and tram vehicles use existing roads, with platform sites for intermediate waits. The complete city example connects buildings, a bus stop and its served destinations. There is no generated pathfinding: author the route and let the acceptance checks reject invalid geometry.

For passive residents, pose=rest on an explicit prop or furnish preserves the full model without live NPC or rig state. on=sidewalk keeps their complete footprints on the outer paving, clear of crossings and entrances. These resting instances stay passive. Use motion=walk(...) or motion=roam(...) with ambient ownership for instanced movement and nearby flight, or role=npc for a custom bounded program. Population rules and runnable example.

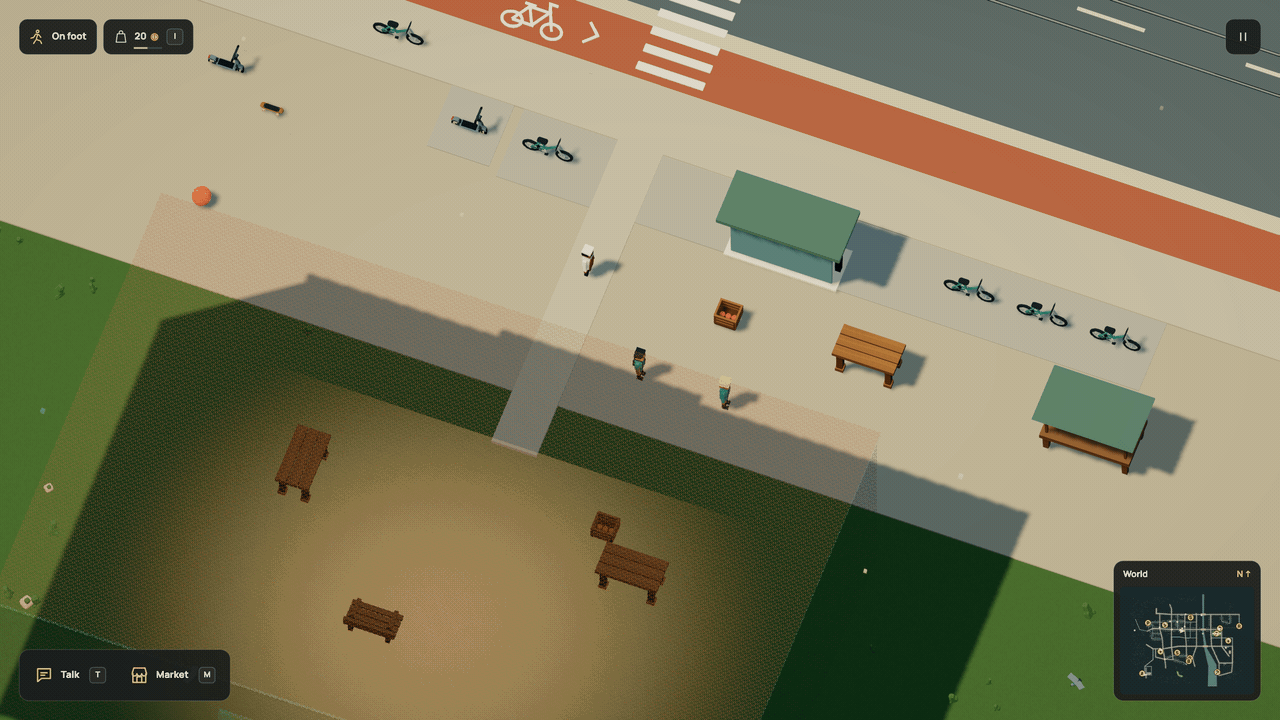

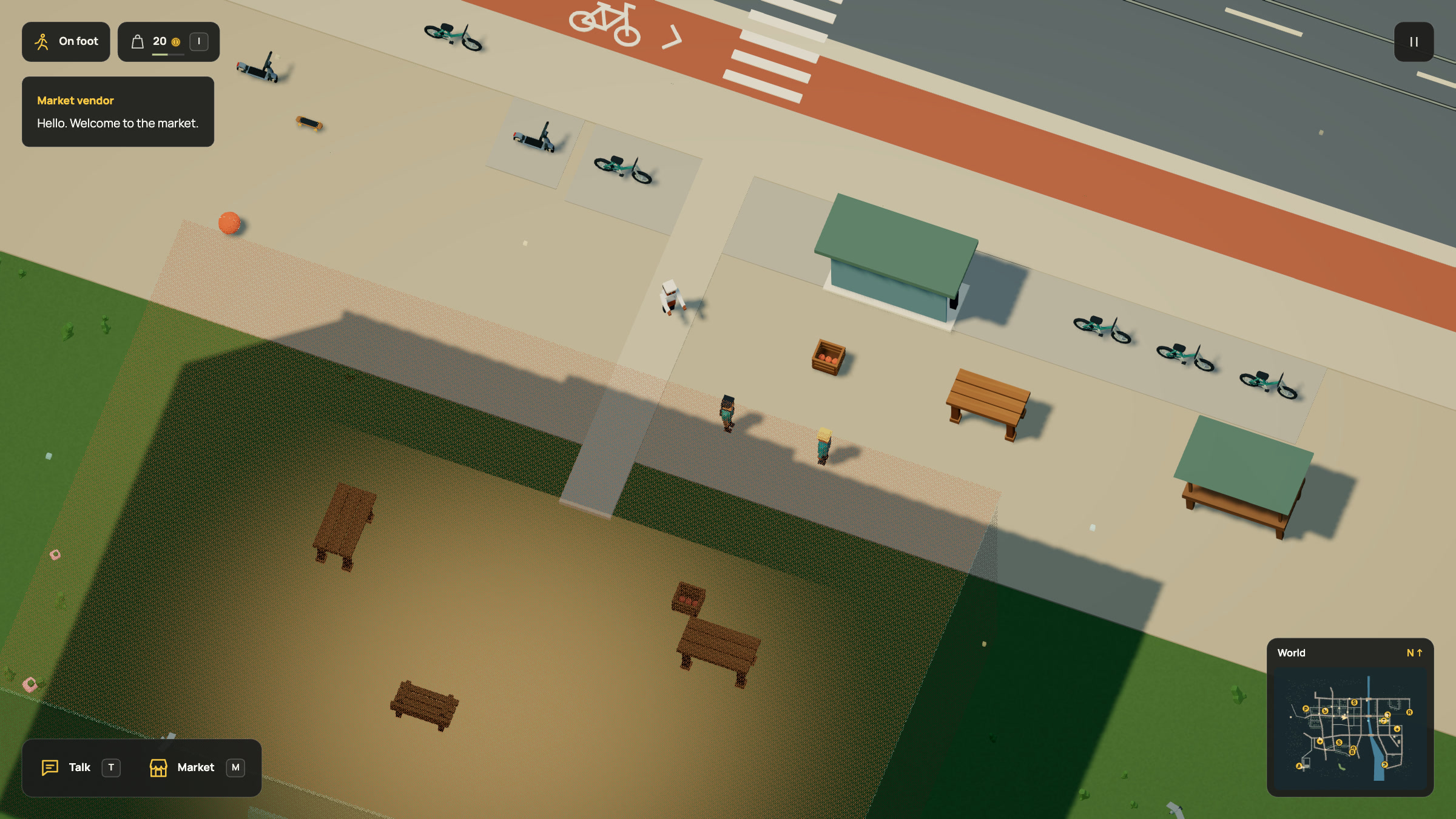

Talk to a person

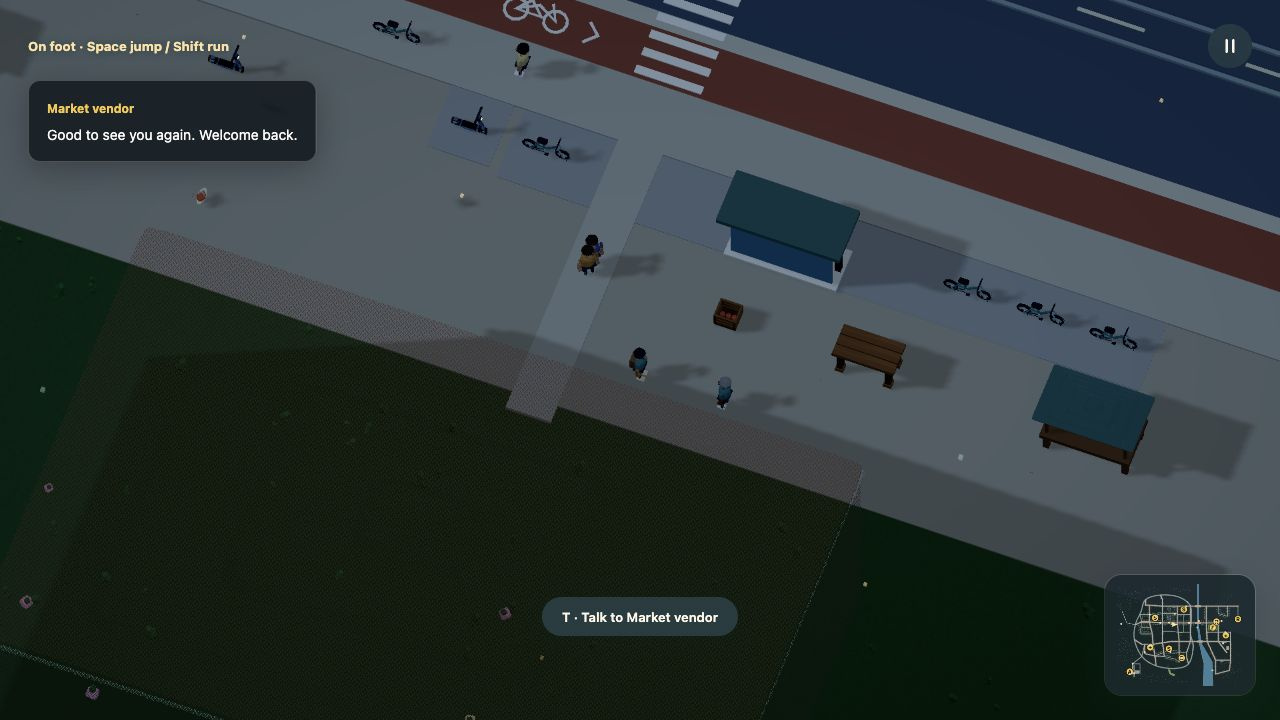

Walk up to the market vendor, teacher, health worker or commuter and press T, or use the contextual talk button. Each press advances one authored transition. The person faces you and their reply appears as plain text. Move away or board a vehicle and the caption disappears. People remember meeting you and can give a different return greeting. Familiarity survives R, travelling and local save/load. It resets on Start over. The vendor has a second reply; the commuter pauses their journey and later resumes from the same point.

Watch the conversation · HD video

Use on talk(event=interact,to=hello,radius=55) to enter a reply state. Put say="Hello." on a stationary idle or perform state. Text accepts 1–240 nonblank characters. Interaction uses 3D distance and a 10–80-unit radius; one press selects one eligible person, with stable ID ties. A reply lasts at most eight simulation seconds and remains local to that NPC. Ordinary proximity reactions do not speak automatically.

The engine displays text safely and owns input, timing and range. Dialogue does not create audio, inventory, trade, employment, quests or relationship changes. Use familiar=false or familiar=true on an interact transition to branch between a first meeting and a return visit. Other events reject that condition. This one-player memory is familiarity, without friendship or dating progression. Saved world state. These conversations are authored mocks. The same bounded state machine can be extended as those mechanics become executable.

The complete example below is identical to its downloadable source.

dream 2;
material blue(style=toon,colors=[#537eaa,#3c5f87]);
material skin(style=toon,colors=[#c59774,#a97655]);
object pedestrian(label="Pedestrian"){
  measure(kind=person,axis=y,meters=1.8);
  body(interaction=decor,radius=4,height=18);
  part torso(shape=capsule,material=blue,at=[0,11,0],size=[5,6,4]);
  part head(shape=sphere,material=skin,at=[0,16,0],size=[4,4,4]);
  part nose(shape=sphere,material=skin,at=[2,16,0],size=[1,1,1]);
  repeat legs(index=i,count=2){
    joint leg(at=[0,8,i*3-1.5],motion=swing(axis=z,deg=18,hz=.6,phase_deg=i*180)){
      part shin(shape=capsule,material=blue,at=[0,-4,0],size=[2,8,2]);
    }
  }
}
behavior welcome(start=waiting){
  state waiting(action=idle){on talk(event=interact,to=hello,radius=55,familiar=false);on again(event=interact,to=returning,radius=55,familiar=true);}
  state hello(action=idle,face=player,say="Hello. Welcome to the neighborhood."){
    on ask(event=interact,to=about,radius=55);
    on finish(event=after,to=waiting,seconds=6);
  }
  state returning(action=idle,face=player,say="Good to see you again."){
    on finish(event=after,to=waiting,seconds=6);
  }
  state about(action=idle,face=player,say="I like walking by the river. See you around."){
    on finish(event=after,to=waiting,seconds=6);
  }
}
place neighbor(object=pedestrian,at=[580,710],role=npc,behavior=welcome);
world(size=[4000,2400],spawn=[525,609],heading_deg=0);
road circuit(width=118,points=[[300,590],[660,590],[810,500],[810,220],[660,130],[300,130],[150,220],[150,500]]);

checkpoint start(at=[480,612.5],dir=[1,0],width=100);
checkpoint east(at=[828.75,360],dir=[0,-1],width=100);
checkpoint north(at=[480,107.5],dir=[-1,0],width=100);
checkpoint west(at=[131.25,360],dir=[0,1],width=100);

Accounts, customers and staff

An NPC can own an account through the optional commerce system. The market commuter buys and eats at its actual route position; a stationary vendor can replenish stock through the same paid work available to the player. Conversation still changes only its authored social state and familiarity. Commerce adds explicit inventory, money, needs and work state, without new actor or rig slots. Meal plans and daily shifts add bounded journeys through the pedestrian network; general needs planning and relationship progression remain separate work.

The school staff account can buy and eat bread after a player delivery fills its market lot. Delivery cargo remains separate from owned food. Contracts currently use shared player/NPC collection and handoff checks. Assigned helpers can carry finite supplies on foot; opening hours and physical counter attendance can make them wait.

Repair accounts can temporarily own a stationary NPC's movement. Optional service grounds derives a bounded pedestrian route between work areas, checks live contacts and saves the trip. The underlying behavior program pauses and resumes at home. This does not add a general pathfinding action to behavior programs. Connected repairs.

Repair workers can also serve explicitly named sidewalks and bounded dry verges. They still use pedestrian crossings between streets, pause for live obstructions and return home after consuming finite supplies. This is the same automatic repair policy, not an extra NPC controller. Street services.

Recognize what the player has done

An interact transition can use requires=milestone_id from the world's economy. It checks the player's personal completion record. The teacher can recognize a school delivery, and the vendor can recognize paid work at their own market. A completed NPC task cannot produce that response for the player. Every placement using the program must be the task's receiving market actor; unknown or unrelated guards fail complete-world acceptance. Keep a normal greeting as the fallback, and put the guarded response first because declaration order still wins.

See personal work and recognition for the checked complete example. Speech remains authored text, with the same range, sight, timing, per-instance familiarity and state limits. It does not transfer resources or add a friendship score.

Programmed person NPCs can take meal trips through account.meal. Their program clocks pause while walking, eating and returning, then resume at the same routine position. They use the existing pedestrian planner and finite player transactions, with no extra NPC/rig slots.

Shared meals add per-person activity history. Optional on.shared_meals gates interact-only dialogue on completed player meals with this particular social NPC; unknown accounts, non-interact guards and programs used by people without the capability fail acceptance. Their original program pauses until they return home.
